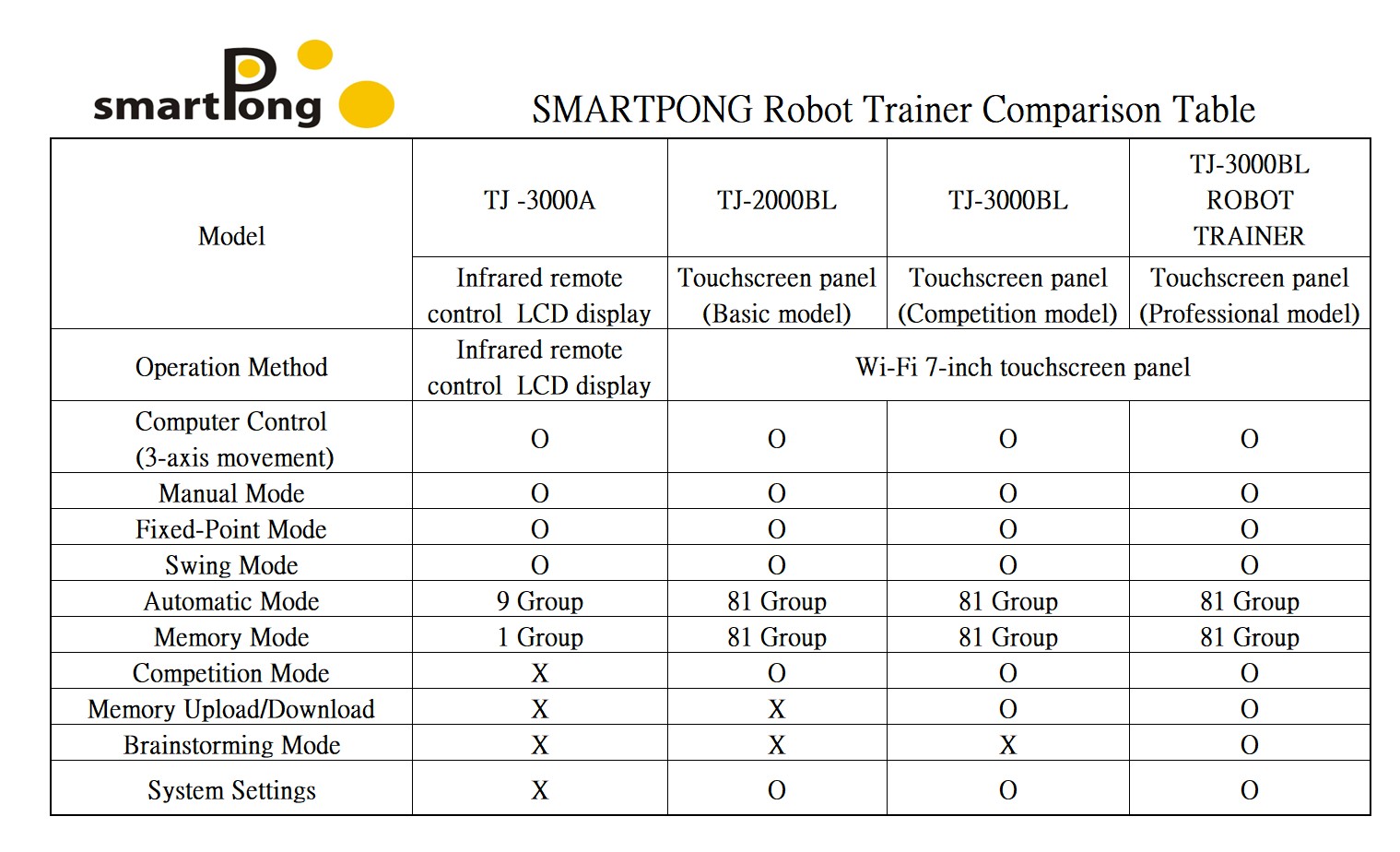

一. TJ-2000BL Basic Model
二. TJ-3000BL Competition Model (Supports uploading and downloading memorized ball trajectories)
三. TJ-3000BL ROBOT TRAINER Professional Model (Supports uploading and downloading memorized ball trajectories, Brainstorming Mode)
o Emits sound when the ball is launched, regardless of whether it is hit or not, enhancing concentration.
o Only the professional version provides Brainstorming Mode (the ball launch produces sound, whether hit or not).
Modes:
1. Manual Fixed-Point Mode
2. Manual Swing Mode
3. Automatic Mode
4. Memory Mode
5. Competition Mode
1. Manual Fixed-Point Mode
Allows users to manually set the three-axis coordinates of the machine (spin, elevation angle, left/right fixed point) and action parameters (ball frequency, ball speed, action duration). Users can also set the machine to release balls at a single fixed point or continuously.
2. Manual Swing Mode
Similar in operation to Manual Fixed-Point Mode, except that the left and right coordinates are manually adjustable within defined left and right limits. Users can set the machine to release balls in a non-fixed (swinging) manner within these limits, either as a single release or continuously.
3. Automatic Mode
Built-in with 81 types of ball trajectories of varying difficulty, making operation easy.
Automatic Mode A73-A81 offers different levels of random ball releases.
4. Memory Mode
Provides 81 memory slots for saving or clearing settings, allowing users to customize ball trajectories to meet personal training needs.
This mode enhances both challenge and enjoyment while fulfilling the needs of professional users.
• Memory Mode M51-M99 not only supports individual practice sessions but also provides tactical training when combined with Competition Mode (Mode 5) to simulate match scenarios.
5. Competition Mode
Offers five levels of random ball release patterns, allowing users to select from levels 1 to 5 based on difficulty and choose the number of balls:
• Level 1 (Low)
• Level 2 (Medium)
• Level 3 (High)
• Level 4 (Highest)
• Level 5 (Tactical)
A coach or user can pre-program the initial rally sequences (e.g., first 2 or 3 strokes) into memory slots M51-M99.
When selecting Level 5 Competition Mode, the machine will randomly pick a sequence stored in M51-M99 to release balls.
Note:
• Ball frequency settings:
o Backspin (2-bounce) → 12 balls per unit time
o Topspin (2-bounce) → 15 balls per unit time
o Direct net crossing (1-bounce):
 Topspin → 20 balls per unit time
 Backspin → 15 balls per unit time

Brainstorming Mode: School-Specific Version.
Included Accessories: One speaker, one speaker cable, and one charging cable.
Setup Instructions:
*Enter the System (as shown in the illustration): Set the brainpower icon to ON. Adjust the advance sound timing (SOUND) to 2. This timing indicates the sound cue will be given 0.2 seconds before the ball is launched. 0 represents normal timing, while 5 means the sound cue will be given 0.5 seconds earlier (each number corresponds to a 0.1 second advance). Once the desired number is set, press and hold the SOUND button until the number is highlighted, indicating the setting is complete (as shown in the illustration).

*In Manual Fixed-Point, Manual Swing, Automatic Mode, ( or Memory Mode): Set the time to the number of balls to be launched. If the setting is based on usage time, the sound feature will not be activated (as shown in the illustration).
Adjust the ball frequency to the lowest setting: (For automatic mode: 15 and for manual mode: 1 are recommended) (as shown in the illustration).

*After Completing the Setup: Press the Start button. The machine will emit a Prepare sound on the 4th ball and a Start sound on the 5th ball. From the 6th ball onward, the system will randomly play one of the following four sounds, requiring the user to respond accordingly:
1. Hit the ball: Swing the racket to hit the ball.
2. Catch the ball: Catch the ball with your hand.
3. Don’t hit: Catch the ball with your hand.
4. Don’t catch: Swing the racket to hit the ball.

*Speaker Connection: A 2-pin socket is located on the back of the touchscreen. Plug in the power cord and connect the speaker cable. Turn on the speaker's power to use.
*Sound Timing Adjustment: There are six adjustment levels (0-5). Users can advance or delay the sound cue based on personal training needs to enhance brainpower and reaction training.

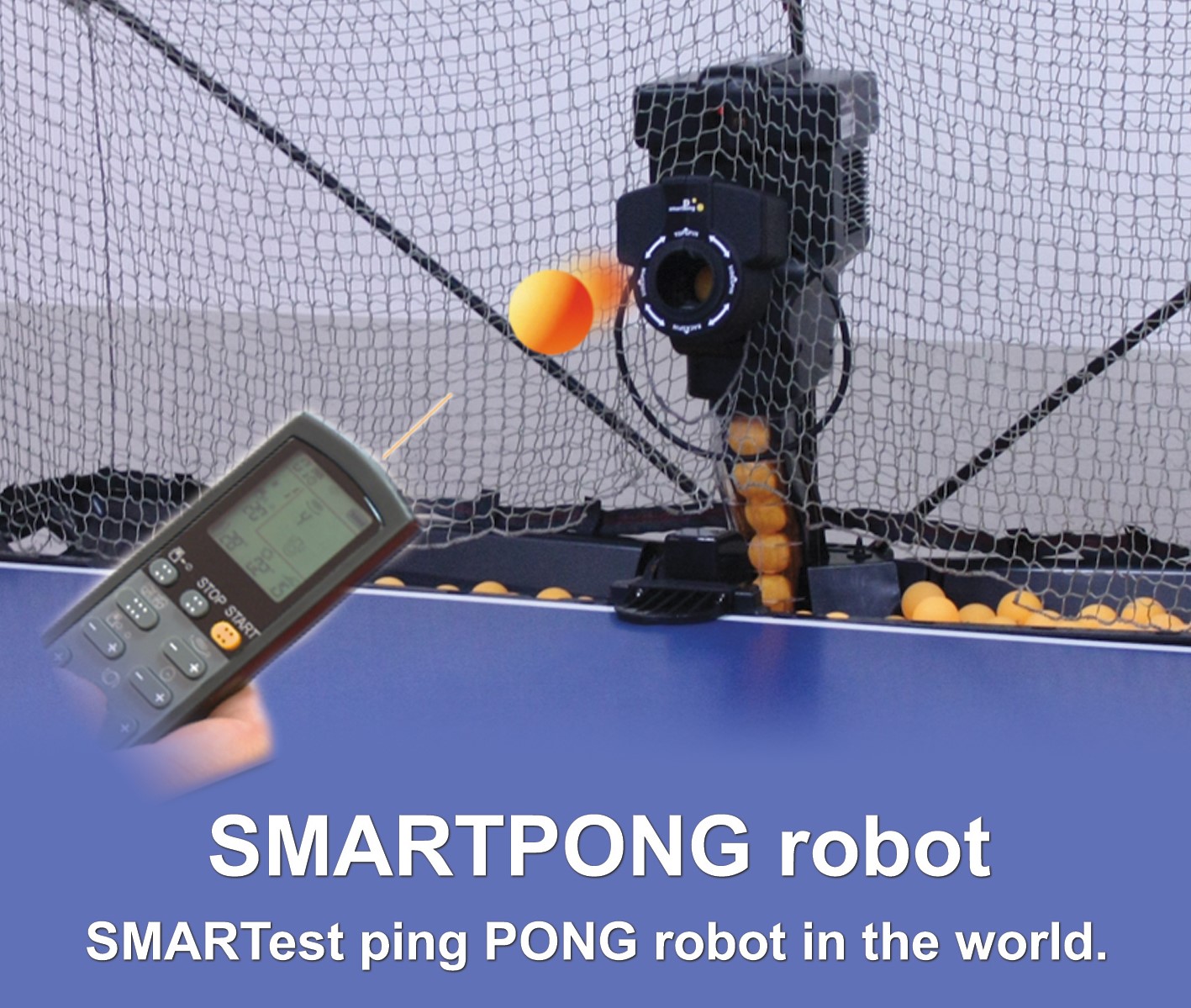

The first computer fully automated table tennis robot in the world.
The first table tennis robot has wireless remote control with LCD display.
The first table tennis robot includes functions: AUTO, MANUAL and ball route's memory pre-programmed modes.
It is suitable for player of any skill level.
It is the perfect practice partner that will help you reach your true potential.
No heat after extending play, low noise.
It includes an automatic ball recycling system, meaning the balls are automaticallycollected and served allowing for unlimited play.
Built-in automatic electrical power switching for use anywhere in the world (electrical specification: AC 88V to 240V).
It is supported with detail User's Manual and Demo DVD.
Currently it is the most state-of-the-art products with leading technology, unique features and powerful functions table tennis robot in the world.
It is awarded with patent in Germany, USA, Japan, Taiwan, China, etc.

The benefits of the new generation SMARTPONG table tennis robot
★ MORE RELIABLE、MORE DURABLE、HIGH PERFORMANCE ★
The new generation SMARTPONG table tennis robot (model no.: TJ-3000BL) using the BLDC (Brushless DC) Motor as its Serve Motor, and in the meantime it utilized the more complex & expensive hardware circuit and upgraded the firmware to a new version, in order to completely take advantage of the high performance of the new type Serve Motor (i.e. Brushless DC Motor).
Because of the new upgrades so the new generation SMARTPON Robot have the main benefits as below:
●High reliability due to there’s no power loss across brushes (i.e. no brush wear).
●Ability to maintain or increase torque at various speeds. Importantly, because BLDC Motor commutation occurs on windings (there’s no power loss across brushes), making the components significantly more efficient.
●Perfect high speed vs. torque performance, as speed increases the viable torque increases. This is not like brush motors, as speed increases, brush friction increases and viable torque decreases.
●Maintain torque at a very low speed (i.e. ability to keep the ball low). This is not like brush motors, as speed decreases and viable torque decreases.
●New appended a BALL SPEED FINE-TUNING KNOB. Because the ball elevation angle and the BALL SPEED in AUTO Mode are predefined in factory so the user cannot modify it. But the user can use the BALL SPEED FINE-TUNING KNOB to tune and increase the BALL SPEED, when the ball speed motor becomes weak due to it has worn or aged.
●More accurate in serve ball’s positioning control.
●Durable serve motor, require less and sometimes no maintenance due to the lack of brushes.
●Other benefits of using the BLDC motor as new type Serve Motor include high output power, high efficiency (no voltage drop across brushes), better heat dissipation, flat speed/torque, enables operation at all speeds with rated load, Higher speed range (no mechanical limitation imposed by BRUSHES/COMMUTATOR), low electric noise generation, no electromagnetic interference (EMI), no spark, etc.
After you realized above descriptions of our robot,
You will accept our robot is your only best choice!
